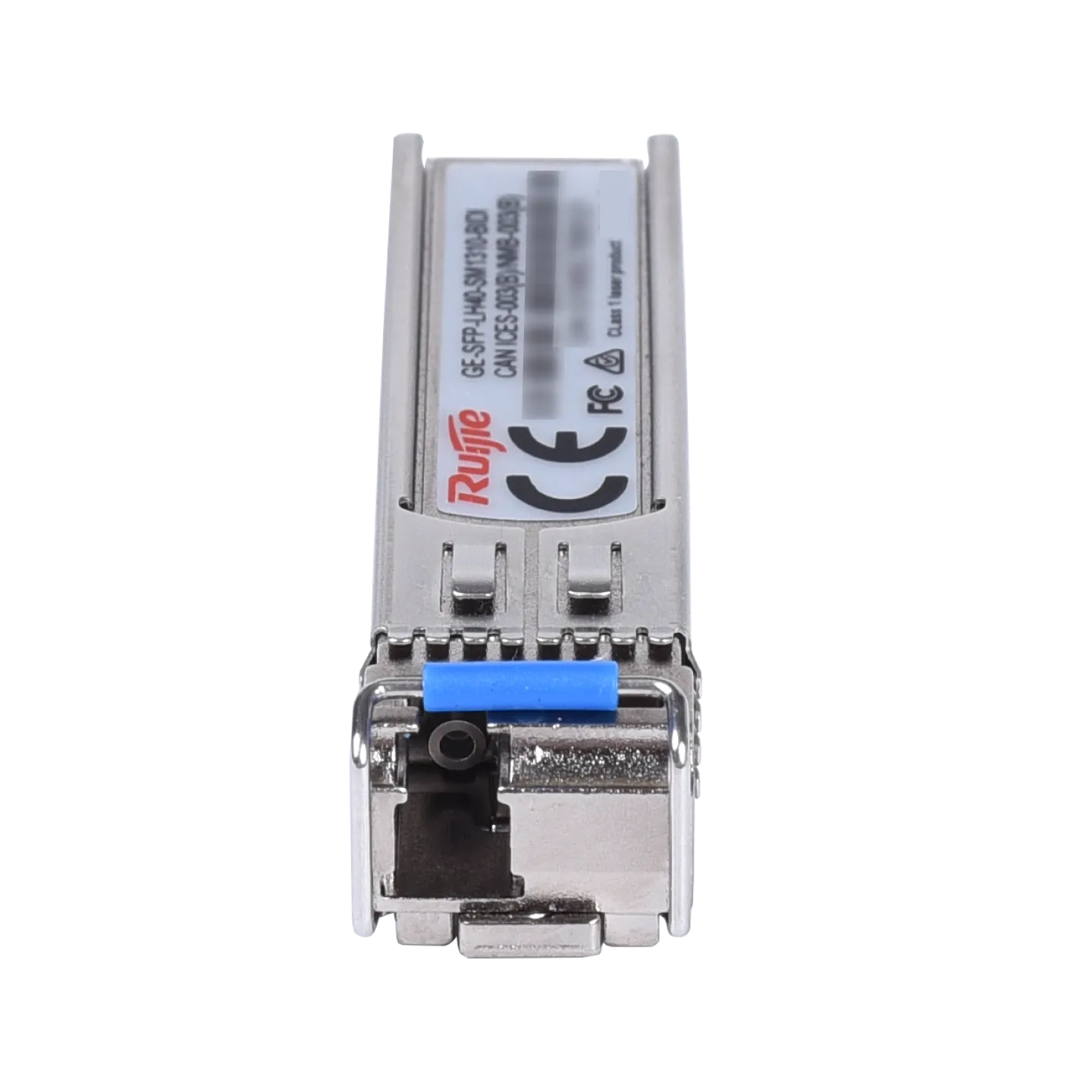

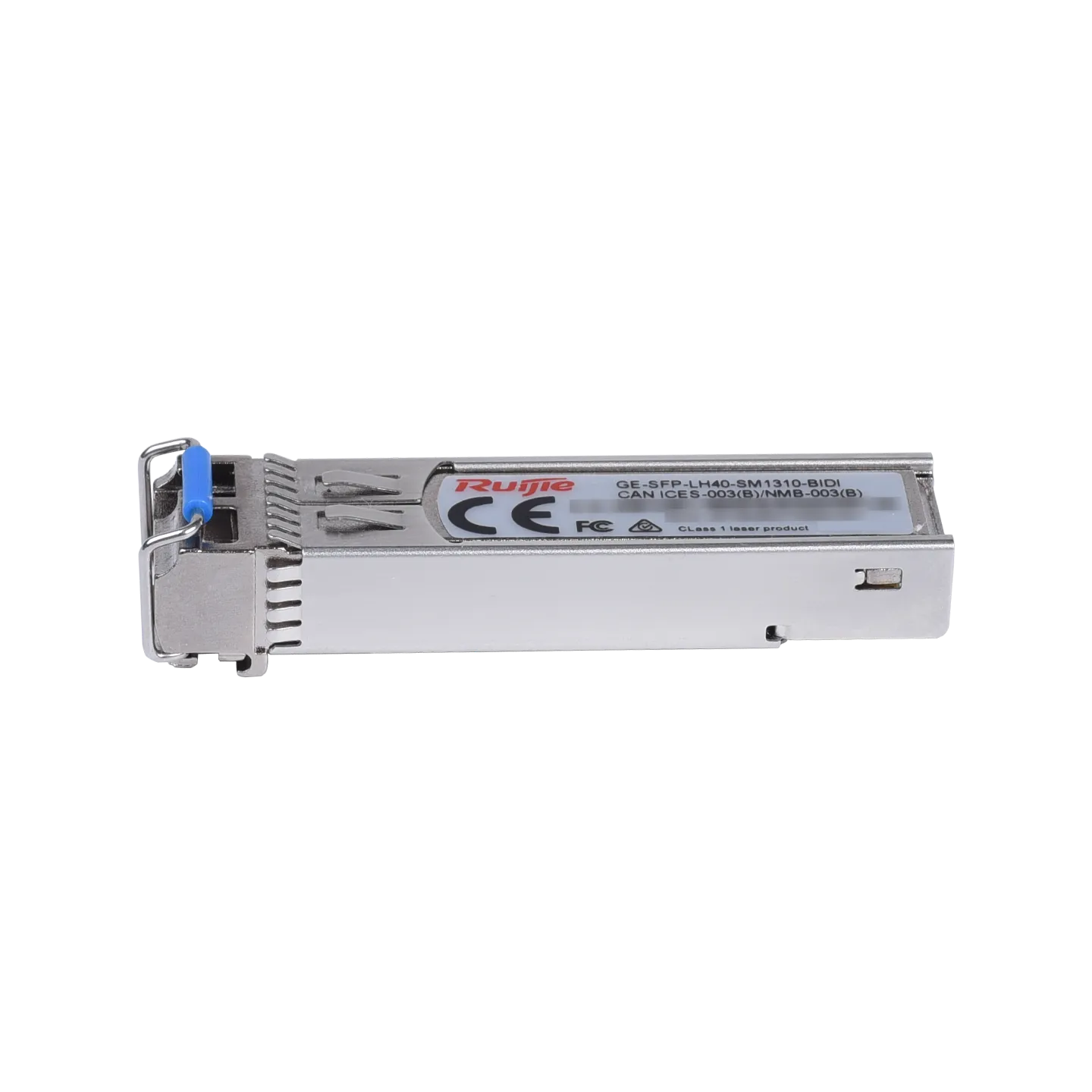

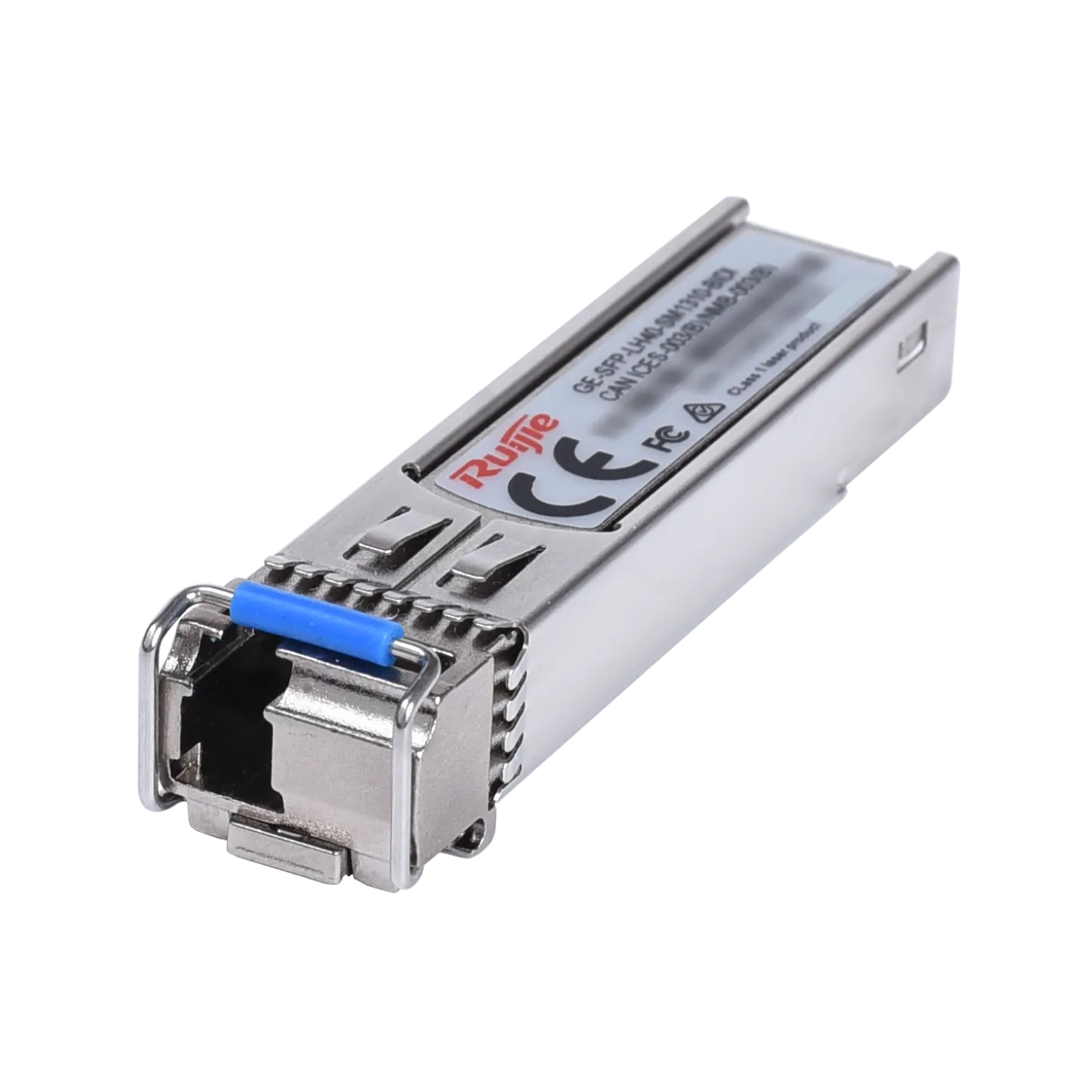

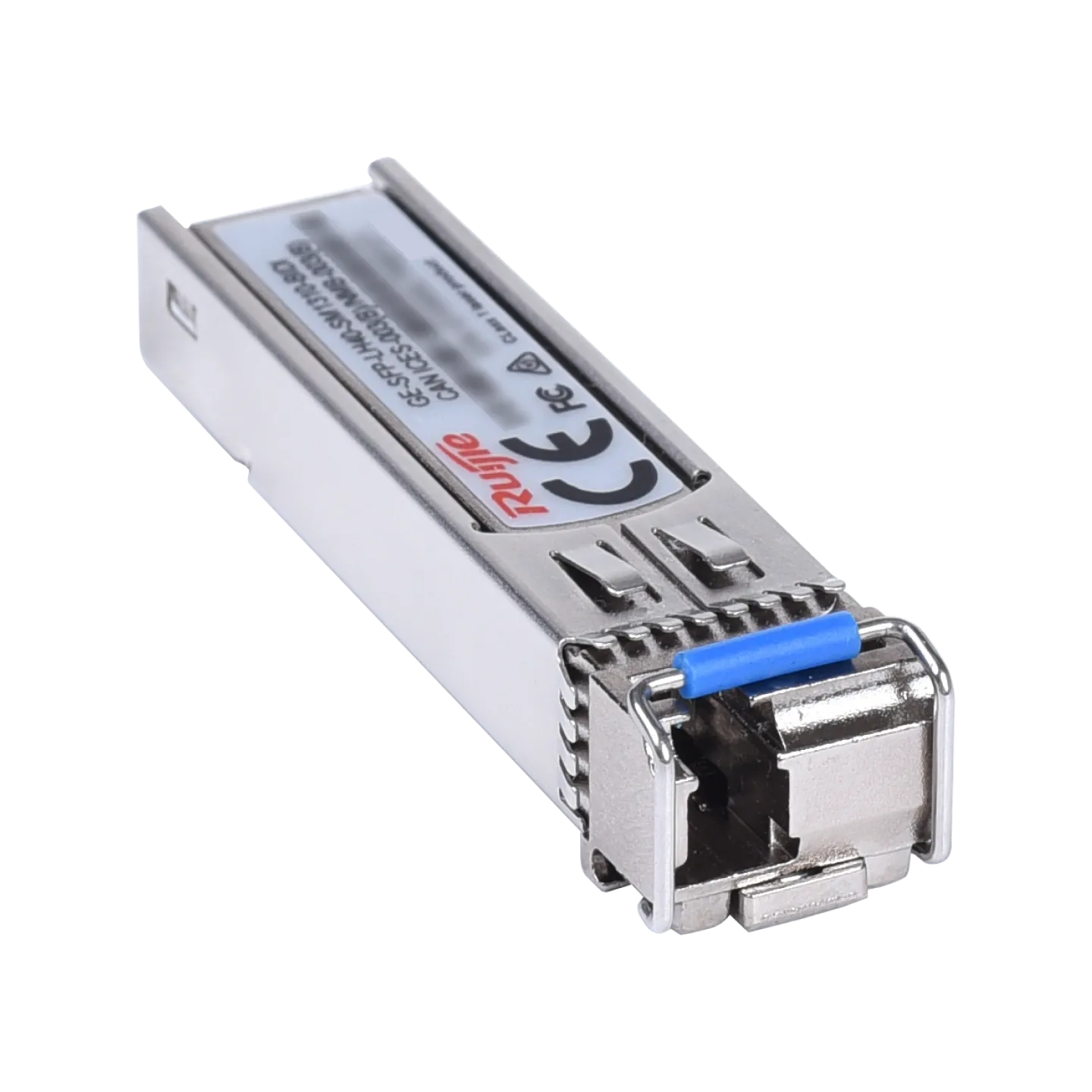

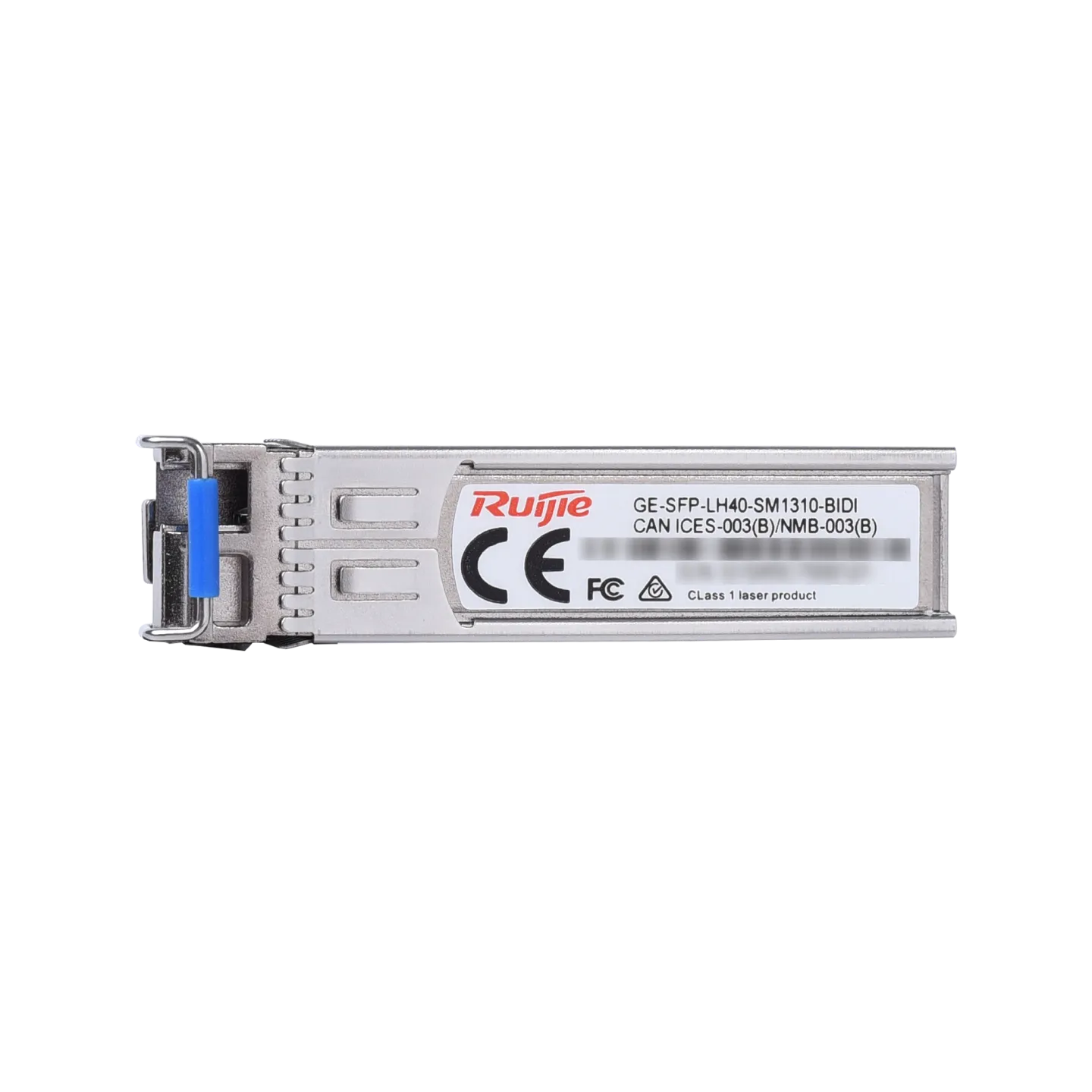

Name: Reyee GE-SFP-LH40-SM1310-BIDI
Brand: Reyee
SKU: 1004
Availability: InStock

Specifications

Model	MINI-GBIC-SX-MM850	MINI-GBIC-LX-SM1310	MINI-GBIC-LH40-SM1310	MINI-GBIC-ZX80-SM1550	MINI-GBIC-GT
Data rate	1.25 Gbps				1000base-X to 1000base-T
Form factor	SFP
Connector type	Duplex LC	Duplex LC	Duplex LC	Duplex LC	RJ45
Cable type	MMF	SMF	SMF	SMF	Cat 5e/6/6a
Fiber end face finish type	Ultra Physical Contact (UPC)				N/A
Transmitter type	VCSEL	DFB	DFB	DFB	N/A
Receiver type	PIN				N/A
Reach	550 m (1,804.46 ft.)	10 km (32,808.40 ft.)	40 km (131,233.60 ft.)	80 km (262,467.19 ft.)	100 m (328.08 ft.)
Bit error ratio (BER)	1.00E-12				N/A
Data diagnosis-capable (DDM/DOM)	Yes				No
Power consumption	≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm)	850	1310	1310	1550	N/A
Max. transmit power (AVG)	0 dBm	–3 dBm	0 dBm	5 dBm	N/A
Min. transmit power (AVG)	–9.5 dBm	–11 dBm	–5 dBm	0 dBm	N/A
Min. extinction ratio	≥ 9 dB				N/A
Receiver Optical Parameters
Receive sensitivity (OMA)	< –17 dBm	< –19 dBm	< –23 dBm	< –27 dBm	N/A
Overload optical power (AVG)	0 dBm	–3 dBm	–3 dBm	–3 dBm	N/A
Environment and Reliability
Operating temperature	0°C to 70°C (32°F to 158°F)
Operating humidity	10% RH to 90% RH
Storage temperature	–40°C to +85°C (–40°F to +185°F)
Storage humidity	10% RH to 90% RH
Dimensions and Weight
Dimensions (W x D x H)	56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)		68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.)	56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight	35 g (0.08 lbs.)

Model	GE-SFP-LH40-SM1310-BIDI	GE-SFP-LH40-SM1550-BIDI	GE-SFP-LX20-SM1310-BIDI	GE-SFP-LX20-SM1550-BIDI		GE-SFP-LX03-SM1310-BIDI-I	GE-SFP-LX03-SM1550-BIDI-I
Data rate	1.25 Gbps
Form factor	SFP

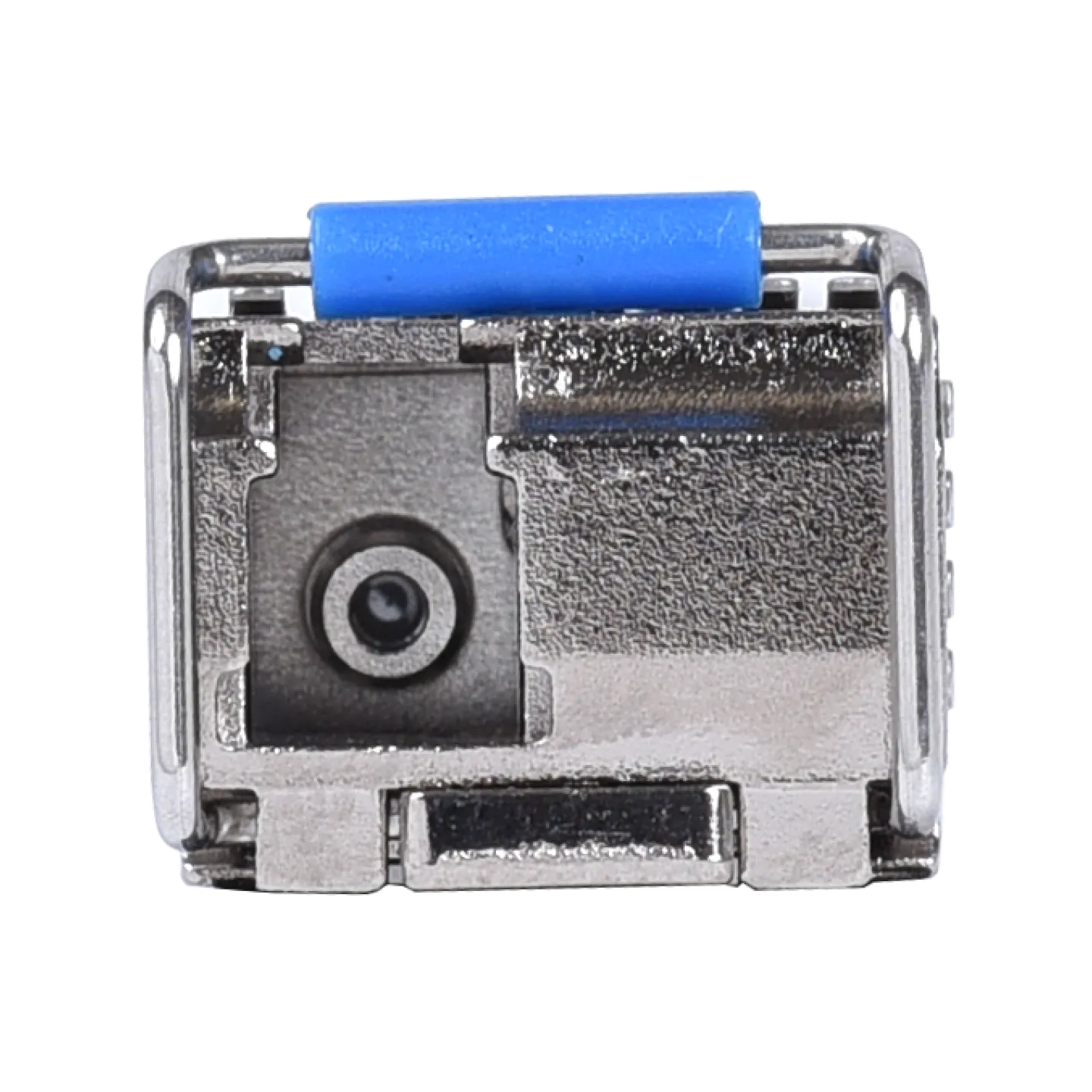

Connector type	BIDI LC
Cable type	SMF
Fiber end face finish type	Ultra Physical Contact (UPC)
Transmitter type	DFB	DFB	FP	DFB		FP	DFB
Receiver type	PIN
Reach	40 km (131,233.60 ft.)		20 km (65,616.80 ft.)		3 km (9,842.52 ft.)
Bit error ratio (BER)	1.00E-12
Data diagnosis-capable (DDM/DOM)	Yes
Power consumption	≤ 1.5 W
Transmitter Optical Parameters
Wavelength	1310 nm TX 1550 nm RX	1550 nm TX 1310 nm RX	1310 nm TX 1550 nm RX	1550 nm TX 1310 nm RX		1310 nm TX 1550 nm RX	1550 nm TX 1310 nm RX
Max. transmit power (AVG)	0 dBm		–3 dBm
Min. transmit power (AVG)	–5 dBm		–9 dBm
Min. extinction ratio	≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)	< –23 dBm		< –20 dBm		< –22 dBm
Overload optical power (AVG)	–3 dBm
Environment and Reliability
Operating temperature	0°C to 70°C (32°F to 158°F)
Operating humidity	5% RH to 95% RH
Storage temperature	–40°C to +85°C (–40°F to +185°F)
Storage humidity	5% RH to 95% RH
Dimensions and Weight
Dimensions (W x D x H)	56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight	35 g (0.08 lbs.)
